Power to the People: Touring a Beastly Custom Solar System on the Brinkley Model G 3500!
Alright, RV enthusiasts, prepare to be amazed! We’re taking a deep dive into a custom solar setup that’s nothing short of extraordinary. This system, installed on a Brinkley Model G 3500, is designed for serious off-grid adventures. Get ready to have your mind blown!
Solar Powerhouse

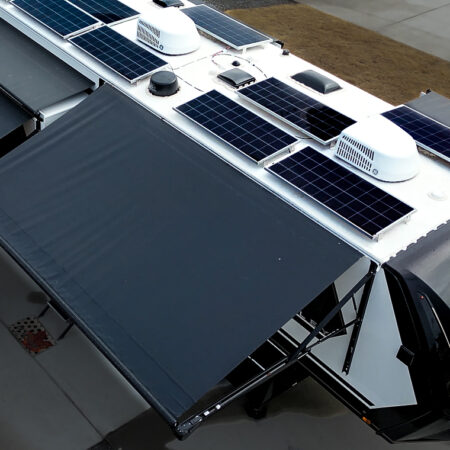

This RV boasts a whopping 2800 watts of solar panels mounted on the roof. That’s enough juice to keep you powered up even when you’re miles away from the nearest campground. And to store all that energy? A massive 1200 amp-hour battery bank!
Inverter Magic
The heart of the system is a pair of Victron Multiplus 2 inverters (2×120 3000). These aren’t your average inverters; they’re hybrids, meaning they can also charge your batteries from shore power or a generator. When you’re off-grid, they draw power from the batteries to deliver a staggering 4800 watts! The dual setup means you can run two power-hungry appliances at the same time!
Solar Charge Controllers: Efficiency at its Finest
Two Victron Smart Solar 250/100 charge controllers manage the incoming solar power from two separate 1400-watt arrays. This ensures the batteries are charged efficiently and even allows you to run an air conditioner during the day using only solar power!
Safety and Control
Safety is paramount, and this system has it covered. A solar disconnect switch allows you to safely cut off power from the solar panels for maintenance. Two Blue Sea 350 amp battery disconnect switches control the 12V power from the batteries.
Massive Battery Bank
Six 206 amp-hour batteries provide over 1200 amp hours at 12 volts. These batteries are housed behind a custom-built, ventilated wall, ensuring they operate safely and efficiently.
Command Center
A 7-inch touchscreen inside the RV provides complete control and monitoring of the entire system. You can also access the system remotely, giving you peace of mind wherever you are.
This custom solar system on the Brinkley Model G 3500 is a true marvel of engineering. It offers incredible power, control, and flexibility, making it perfect for anyone who wants to explore the great outdoors without sacrificing the comforts of home.
